Description

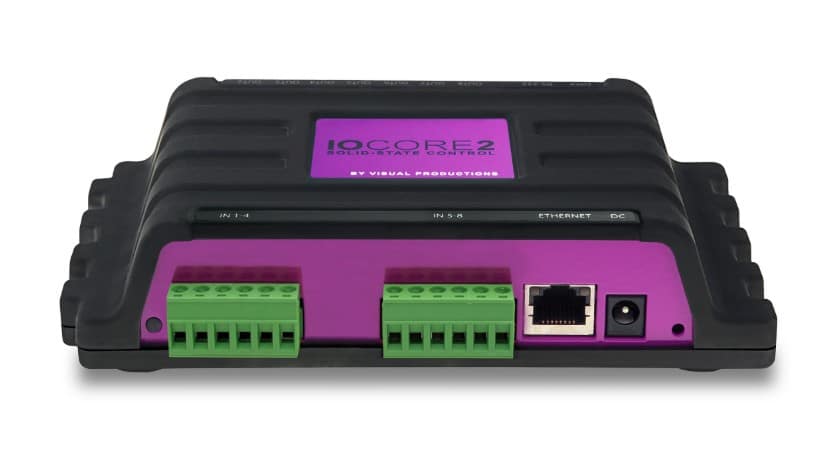

The IoCore2 is a network-based solid-state interface for GPIO signals. It features eight GPI ports that can be configured as digital contact-closures or analog 0-10V level inputs. The IoCore2 also has eight GPO ports that are fitted with potential free relay switches. Furthermore, it has a RS-232 port, a bi-directional DMX-512 port and it supports many Ethernet based protocols.
The IoCore2 is an expansion module for the CueCore2. It can extend the CueCore’s capabilities with its GPI, GPO, RS-232 and DMX ports. Incoming signals on any of these ports can be used to trigger lighting scenes inside the CueCores.
The IoCore2 is capable of sending, receiving and converting between any of its physical ports (GPI, GPO, RS-232 & DMX) and Ethernet based protocols (TCP, UDP, OSC & Art-Net).
The web-interface allows flexibel triggers and conversions to be programmed inside the IoCore2. The unit can operate autonomously, no external equipment required.
